CAVS DVD 205G Plus Player

New! CAVS 205G Plus Karaoke Player

WITH BUILT-IN NETWORK SERVER

New!
Built-in Network Server – Easily select, reserve, and play songs using your phones and tablets. Connect to CAVS 205G Plus using a simple QR code.

Simple to Play – Tap on a song and press Play. With the convenience of using phones and tablets, you can bid farewell to printing hundreds of pages of paper songbooks. Additionally, you have the option to play the songs using the front panel buttons or the remote control.

Simple to Setup – Connect a single HDMI cable for all video, audio, and microphone outputs. The player’s internal digital mixer combines all outputs into one. Additionally, the player features RCA connectors for traditional Audio Video outputs.

Simple to Manage – Load up to 64,000 songs on a single USB flash drive or SD card, or up to 500,000 songs on a 2 TB hard drive. Use the MCG Manager freeware to add songs effortlessly, and play each song instantly without delays.

Now Available at $699

Add to Cart

Comes with

FEATURES

Play CD+G, Super CD+G, CD, VCD, and DVD discs
Play MP3+G, Super CD+G, AVI, and MP4 digital files
Play from compact discs, USB flash drive, and SD Cards
Connect to phones and tablets to
- Select, reserve, and play songs
- Control Pitch/Key
- Control Volume and Echo
HDMI connection for all combined video, audio, and microphone outputs
RCA connections for traditional AV Stereo outputs
Extract Super CD+G and CD+G discs
Record Super CD+G and CD+G karaoke singing with lyricd video
Volume control, Pitch control, Echo control
Reservation, Score, Bill Acceptor, Coaxial digital output

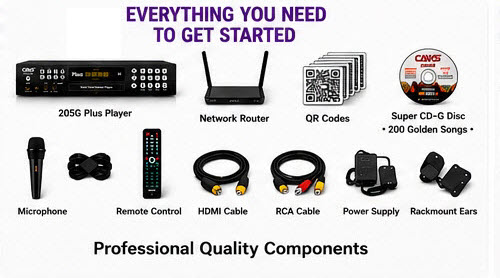

ACCESSORIES

Network router

QR codes

Super CD+G disc with 200 Golden Songs

Microphone

Remote Controller

Power Supply (UL Approved)

HDMI Cable

RCA Cable

Rackmount Ears

USER MANUAL

View Here

Download (PDF)

INSTRUCTIONS

INSTRUCTION FOR CAVS 205G PLUS PLAYERS

BELOW INSTRUCTIONS APPLY TO BOTH CAVS 205G USB AND CAVS 205G PLUS PLAYERS*

*FOR MORE DETAILS, GO TO MCG Manager program

VIDEO INSTRUCTIONS

PROGRAM UPGRADE

Upgrade CAVS Songbook Firmware:
May 1, 2024:
songbook_upgrade_v8.zip

Upgrade Log:
20240501- Expand the internal buffer size to 4MB to accomodate over 80,000 songs.

Upgrade Instruction:

Download the upgrade zip file into your phone or tablet.
Connect the phone or tablet to the 205G Plus player administration page, 192.168.0.100:3500\admin.
Press the Setting button on the left column.
Press the Browse button and select the upgrade zip file.
Press the Upgrade button to start upgrading and when done, press OK to the “Upgrade successful” popup message.
Wait for the Songbook page to restart.

Upgrade CAVS 205G Plus Firmware:
May 1, 2024:

None

Upgrade Log:

Upgrade Instruction:
- Download the Upgrade zip file from the link above.
- Unzip the file to find AP_ROMH.BIN file inside.
- Copy the AP_ROMH.BIN file onto a USB flash drive or a SD card which is formatted FAT32.
- Connect the CAVS 205G USB player to a TV and power on the TV and the player.
- Insert the USB flash drive or the SD card into the CAVS 205G Plus player.
- Using the remote control, press MODE and select F. Drive. A window SMART UPGRADE will appear on the TV.
- Select “< o >” and press Enter.
- Upgrade will begin. DO NOT POWER OFF DURING UPGRADE. Powering off during Upgrade can cause serious damage to the player which is not covered under CAVS warranty.
- When done, the disc tray will open. Take out the USB flash drive or the SD card with the upgrade BIN file from the CAVS 205G Plus player.
- Power off the CAVS 205G Plus player.
- Power on the CAVS 205G Plus player. The disc tray will close and the new firmware will be activated.

STYLISH DESIGN

The new CAVS 205G Plus is ideal for both home and professional entertainment settings. Its front panel boasts large back-lit buttons, ensuring effortless operation even in low-light conditions. Also the customer interface displayed on phones and tablets is intuitive and simple to navigate, enhancing the overall user experience.

USER FRIENDLY

The CAVS 205G Plus comes with a network router and QR codes for seamless connectivity. Upon powering on, the player will automatically connect to the router. From there simply scan the QR codes using your phone or tablet to complete the connection. This grants you access to the intuitive CAVS customer interface, enabling easy browsing and playback of songs.

LOADING SONGS

The CAVS 205G Plus offers versatile playback options, including songs from compact discs, USB flash drives, and SD cards. To facilitate song loading, it includes the MCG Manager freeware, capable of storing up to 64,000 songs on a flash drive/SD card, and up to 500,000 songs on a 2TB hard drive. To download the program and its instruction, go to MCG Manager. With the MCG Manager, each song loaded can play instantly without any waiting time on the CAVS 205G Plus player.

TRADITIONAL AND INNOVATIVE

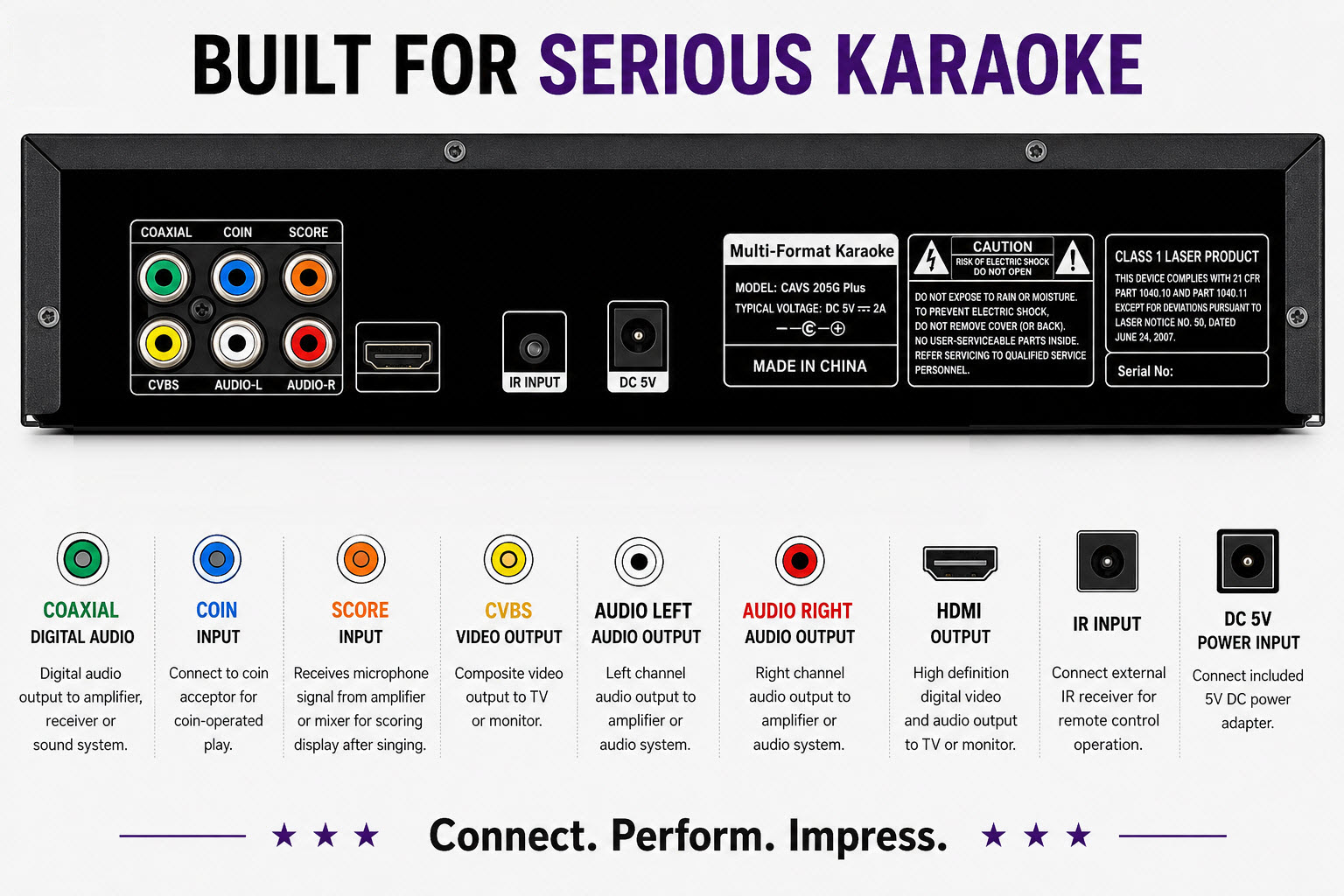

The CAVS 205G Plus boasts several traditional features accessible via corresponding connectors located on the back panel:

COAXIAL: Allows for digital audio output to a digital mixer or soundboard.
COIN: Facilitates connection to a coin machine for setting up Pay-for-Play functionality.
SCORE: Enables scoring of singers in contests.

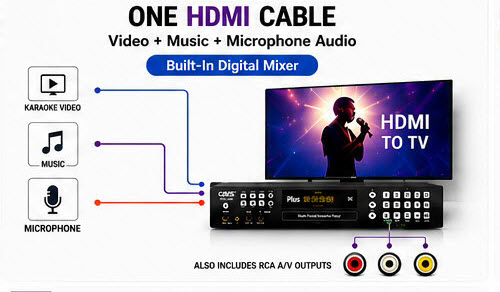

In addition to these features, the CAVS 205G Plus introduces a new HDMI output connector. This connector consolidates video, music, and microphone outputs into a single HDMI cable for seamless connection to your TV. This integration is made possible by an internal digital mixer that combines all outputs into one HDMI signal. For users with traditional TV, amplifier, and speaker setups, the CAVS 205G Plus also includes RCA connectors for Composite video and Stereo mixed-down audio.
